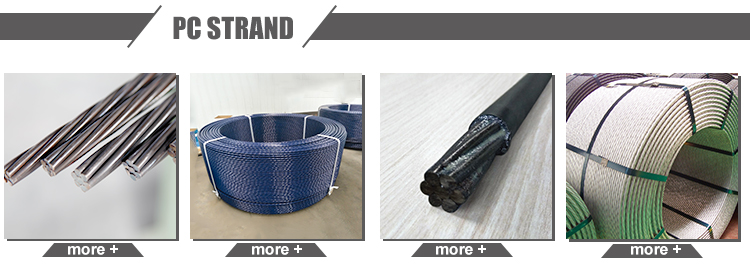

post tension concrete prestressing steel pc single strand wire price
Product Details
| BS5896 |
| Type | Standard 7wire | Super 7wire |
| Mm Nominal Diameter | 9.3/11/12.5/15.2 | 9.6/11.3/12.9/15.7 |
| Mm Diameter Tolerance | +0.3/-0.15/+0.4/-0.2 | +0.3/-0.15/+0.4/-0.2 |
| Mm2 Nominal Area | 52/71/93/139 | 55/75/100/150 |
| Kg/1000m Nominal Weight | 408/557/730/1090 | 432/590/785/1180 |
| KN Strength Grade | 1770/1770/1770/1670 | 1860/1860/1860/1770 |
| KN Minbreaking Strength | 92/125/164/232 | 102/139/186/265 |
| KN Min.yield Strength | 85% Min.brea king strength |
| L0>500mm Min. Elongation | 3.5% |
| L0>500mm Min. Elongation | Initial Load of Min Nominal Breaking Strength | 60%/70%/80% |
| 1000h Value No More Than | 1.0%/2.5%/4.5% |
| JISG3536 |
| Type | SWPR7AN | SWPR7AL | SWPR7BN | SWPR7BL |
| Mm Nominal Diameter | 9.3/10.8 | 12.4/15.2 | 9.5/11.1 | 12.7/15.2 |
| Mm Diameter Tolerance | +0.4/-0.2 |
| mm2 Nominal Area | 51.61/69.68 | 92.9/138.7 | 54.84/74.19 | 98.71/138.7 |
| Kg/1000m Nominal Weight | 405/546 | 729/1101 | 432/580 | 774/1101 |
| KN Min.breaking Strength | 88.8/120 | 160/240 | 102/138 | 183/261 |
| KN Min.yiled Strength | 75.5/102 | 136/204 | 86.8/118 | 156/222 |
| L0>500mm Min. Elongation | 3.5% |
| Relaxation | Initial Load of Min Nominal Breaking Strength | 7.0% |
| 1000h Value No More Than | 2.5% |
Product Details
(1) Steel raw material suppliers from the big steel factory of China
(2) 10 Welded machine import from Germany
(3) Qualified and trained technical and workers
(4) Strictly Quality Control Processing
PROMOTIONAL PRODUCTS OF ANTI HAIL ACCESSORIES WE MADE FOR EUROP
OUR WORKSHOP
1. Q: Can we visit your factory?
A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
2.Q: Are you trading company or manufacturer?
A: We are factory.
3.Q: How long is your delivery time?
A: Generally it is 7-10 days if goods are in stock. Or it is 30 days if the goods are not in stock, it is according to your quantity.
4.Q: Do you provide samples?
A: Yes, We could offer free samples.
5.Q: What is your terms of payment?
A: LC, TT .
6.Q: Why choose us?
A: 1. Strength: Our own factory and professional sales team.
2. Experience: 23 years focus on quality.
3. Price: Competitive.
4. Service: Professional before & after sales service.
5. 100% inspection.
